Setting Up Seafile on Kubernetes on Rocky Linux

Seafile 13 Steps

Label your worker node and say that it has local storage available:

kubectl label nodes <your-worker-node> local-storage-available=true

Create the namespace:

kubectl create ns seafile

Install EPEL:

dnf install -y epel-release

Install pwgen:

dnf install -y pwgen

To make the jwt private key, run:

pwgen -s 40 1

Create the secretMap:

kubectl create secret generic seafile-secret --namespace seafile \
--from-literal=JWT_PRIVATE_KEY='<your-jwt-private-key>' \
--from-literal=SEAFILE_MYSQL_DB_PASSWORD='<your-secure-password>' \
--from-literal=INIT_SEAFILE_ADMIN_PASSWORD='<your-secure-password>' \
--from-literal=INIT_SEAFILE_MYSQL_ROOT_PASSWORD='<your-secure-password>' \
--from-literal=REDIS_PASSWORD='<your-secure-password>' \
--from-literal=S3_SECRET_KEY='' \
--from-literal=S3_SSE_C_KEY=''

Create the seafile-k8s-yaml directory:

mkdir -p /opt/seafile-k8s-yaml

Create the mysql directory

mkdir -p /opt/mysql-k8s-yaml

Create the mysql-data directory to store all of the database data in /root:

mkdir -p /root/mysql-data
mkdir -p /root/redis-data
mkdir -p /root/elasticsearch-data

Pull down all of the required yaml files for seafile:

wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-backend-deployment.yaml
wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-persistentvolume.yaml
wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-persistentvolumeclaim.yaml
wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-service.yaml
wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-env.yaml

Set seafile-persistentvolume.yaml to the following:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-persistentvolume.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: seafile-data
spec:
  capacity:
    storage: 10.9Ti
  volumeMode: Filesystem
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: local-storage
  hostPath:
    path: <your-storage-path>
EOF

Set the seafile-persistentvolumeclaim.yaml as the following:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-persistentvolumeclaim.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: seafile-data
  namespace: seafile
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10.9Ti
  storageClassName: local-storage
EOF

Set seafile-backend-deployment.yaml as the following:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-backend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: seafile-backend
  namespace: seafile
spec:
  replicas: 1
  selector:
    matchLabels:
      app: seafile-backend
  template:
    metadata:
      labels:
        app: seafile-backend
    spec:
      enableServiceLinks: false
      initContainers:
        - name: set-ownership
          image: busybox
          command: ['sh', '-c', 'chown -R root:root /shared']
          volumeMounts:
          - name: seafile-data
            mountPath: /shared
      containers:
        - name: seafile-backend
          image: seafileltd/seafile-pro-mc:13.0-latest
          env:
            - name: CLUSTER_SERVER
              value: "true"
            - name: CLUSTER_MODE
              value: "backend"
          envFrom:
            - configMapRef:
                name: seafile-env
            - secretRef:
                name: seafile-secret
          volumeMounts:
            - name: seafile-data
              mountPath: /shared
      volumes:
        - name: seafile-data
          persistentVolumeClaim:
            claimName: seafile-data
      restartPolicy: Always
      imagePullSecrets:
        - name: regcred
EOF

The setup for seafile-env.yaml:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-env.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: seafile-env
  namespace: seafile
data:
  # for Seafile server
  TIME_ZONE: "Asia/Tokyo"
  SEAFILE_LOG_TO_STDOUT: "true"
  SITE_ROOT: "/"
  SEAFILE_SERVER_HOSTNAME: "<your-worker-node-ip>:30007"
  SEAFILE_SERVER_PROTOCOL: "http"

  # for database
  SEAFILE_MYSQL_DB_HOST: "mysql"
  SEAFILE_MYSQL_DB_PORT: "3306"
  SEAFILE_MYSQL_DB_USER: "seafile"
  SEAFILE_MYSQL_DB_CCNET_DB_NAME: "ccnet_db"
  SEAFILE_MYSQL_DB_SEAFILE_DB_NAME: "seafile_db"
  SEAFILE_MYSQL_DB_SEAHUB_DB_NAME: "seahub_db"

  # for cached
  CACHE_PROVIDER: "redis" # or "memcached"

  ## for redis
  REDIS_HOST: "redis-leader"
  REDIS_PASSWORD: "<your-secure-password>"
  REDIS_PORT: "6379"

  ## for memcached
  MEMCACHED_HOST: "<your-worker-node-ip>"
  MEMCACHED_PORT: "11211"

  # for s3
  SEAF_SERVER_STORAGE_TYPE: "disk"
  S3_COMMIT_BUCKET: ""
  S3_FS_BUCKET: ""
  S3_BLOCK_BUCKET: ""
  S3_KEY_ID: ""
  S3_USE_V4_SIGNATURE: "true"
  S3_AWS_REGION: "us-east-1"
  S3_HOST: ""
  S3_USE_HTTPS: "true"
  S3_PATH_STYLE_REQUEST: "false"

  # for notification
  ENABLE_NOTIFICATION_SERVER: "false"
  NOTIFICATION_SERVER_URL: ""

  # for seadoc
  ENABLE_SEADOC: "true"
  SEADOC_SERVER_URL: "<your-worker-node-ip>" # only valid in ENABLE_SEADOC = true

  # initialization (only valid in first-time deployment and CLUSTER_INIT_MODE = true)
  CLUSTER_INIT_MODE: "true"

  ## for Seafile admin
  INIT_SEAFILE_ADMIN_EMAIL: "admin@example.com"

  ## for cluster basic service
  CLUSTER_INIT_ES_HOST: "elasticsearch"
  CLUSTER_INIT_ES_PORT: "9200"

  # Seafile AI
  ENABLE_SEAFILE_AI: "yes"
  SEAFILE_AI_SERVER_URL: "<your-worker-node-ip>"

  # Matedata server

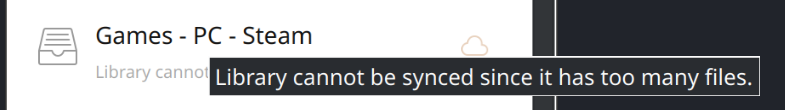

  MD_FILE_COUNT_LIMIT: "0"
EOF

chown -R 1000:1000 /root/elasticsearch-data

restorecon -R -v /root/elasticsearch-data

seafile-service.yaml configuration:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: seafile
  namespace: seafile
spec:
  selector:
    app: seafile-frontend
  type: NodePort
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
      nodePort: 30007
EOF

Create the seafile-http service for the file server (required for file uploads and downloads):

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-http-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: seafile-http
  namespace: seafile
spec:
  selector:
    app: seafile-frontend
  type: NodePort
  ports:
    - protocol: TCP
      port: 8082
      targetPort: 8082
      nodePort: 30008
EOF

Create the following mysql yaml files:

cat << "EOF" | tee /opt/mysql-k8s-yaml/mysql-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: mysql
  namespace: seafile
spec:
  ports:
  - port: 3306
    protocol: TCP
    targetPort: 3306
  selector:
    app: mysql
EOF

cat << "EOF" | tee /opt/mysql-k8s-yaml/mysql-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
  namespace: seafile
spec:
  selector:
    matchLabels:
      app: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
      - image: mysql:9
        name: mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: password
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: mysql-pv-claim
EOF

cat << "EOF" | tee /opt/mysql-k8s-yaml/mysql-pv.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: mysql-pv-volume
  namespace: seafile
  labels:
    type: local
spec:
  storageClassName: manual
  capacity:
    storage: 20Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/root/mysql-data"
EOF

cat << "EOF" | tee /opt/mysql-k8s-yaml/mysql-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mysql-pv-claim
  namespace: seafile
spec:
  storageClassName: manual
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi
EOF

Set up Elasticsearch

# 1️⃣ Host directory for persistence
sudo mkdir -p /root/elasticsearch-data

# 2️⃣ Apply PV & PVC
kubectl apply -f - <<'EOF'
apiVersion: v1
kind: PersistentVolume
metadata:
  name: es-pv-volume
  namespace: seafile
spec:
  storageClassName: manual
  capacity:
    storage: 30Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/root/elasticsearch-data"
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: es-pv-claim
  namespace: seafile
spec:
  storageClassName: manual
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 30Gi
EOF

# 3️⃣ Deploy ES
kubectl apply -f - <<'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
  name: elasticsearch
  namespace: seafile
spec:
  replicas: 1
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      containers:
        - name: elasticsearch
          image: docker.elastic.co/elasticsearch/elasticsearch:7.17.10
          env:
            - name: discovery.type
              value: "single-node"
            - name: ES_JAVA_OPTS
              value: "-Xms512m -Xmx512m"
          ports:
            - containerPort: 9200
          volumeMounts:
            - name: es-data
              mountPath: /usr/share/elasticsearch/data
      volumes:
        - name: es-data
          persistentVolumeClaim:
            claimName: es-pv-claim
---
apiVersion: v1
kind: Service
metadata:
  name: elasticsearch
  namespace: seafile
spec:
  selector:
    app: elasticsearch
  ports:
    - protocol: TCP
      port: 9200
      targetPort: 9200
  type: ClusterIP
EOF

# 4️⃣ Update Seafile ConfigMap (replace host)
sed -i 's/CLUSTER_INIT_ES_HOST:.*/CLUSTER_INIT_ES_HOST: "elasticsearch"/' /opt/seafile-k8s-yaml/seafile-env.yaml
sed -i 's/CLUSTER_INIT_ES_PORT:.*/CLUSTER_INIT_ES_PORT: "9200"/' /opt/seafile-k8s-yaml/seafile-env.yaml
kubectl apply -f /opt/seafile-k8s-yaml/seafile-env.yaml

Deploy the mysql deployment:

kubectl apply -f /opt/mysql-k8s-yaml

Deploy the seafile deployment:

kubectl apply -f /opt/seafile-k8s-yaml/

Create the Redis directory:

mkdir -p /opt/redis-k8s-yaml

Deploy the Redis instance:

cat << "EOF" | tee /opt/redis-k8s-yaml/redis-leader-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis-leader
  namespace: seafile
  labels:
    app: redis
    role: leader
    tier: backend
spec:
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
        role: leader
        tier: backend
    spec:
      containers:
      - name: leader
        image: "registry.k8s.io/redis@sha256:cb111d1bd870a6a471385a4a69ad17469d326e9dd91e0e455350cacf36e1b3ee"
        args: ["redis-server", "--requirepass", "password"]
        ports:
        - containerPort: 6379
EOF

Create the Redis Leader Service:

cat << "EOF" | tee /opt/redis-k8s-yaml/redis-leader-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: redis-leader
  namespace: seafile
  labels:
    app: redis
    role: leader
    tier: backend
spec:
  type: ClusterIP
  ports:
    - protocol: TCP
      port: 6379
  selector:
    app: redis
    role: leader
    tier: backend
EOF

Apply the Redis yaml files:

kubectl apply -f /opt/redis-k8s-yaml/

Download the frontend seafile deployment yaml:

wget -P /opt/seafile-k8s-yaml https://manual.seafile.com/13.0/repo/k8s/cluster/seafile-frontend-deployment.yaml

Set the seafile-frontend-deployment.yaml to the following:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-frontend-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: seafile-frontend
  namespace: seafile
spec:
  selector:
    matchLabels:
      app: seafile-frontend
  template:
    metadata:
      labels:
        app: seafile-frontend
    spec:
      enableServiceLinks: false
      initContainers:
        - name: set-ownership
          image: busybox
          command: ['sh', '-c', 'chown -R root:root /shared']
          volumeMounts:
          - name: seafile-data
            mountPath: /shared
      containers:
        - name: seafile-frontend
          image: seafileltd/seafile-pro-mc:13.0-latest
          env:
            - name: CLUSTER_SERVER
              value: "true"
            - name: CLUSTER_MODE
              value: "frontend"
          envFrom:
            - configMapRef:
                name: seafile-env
            - secretRef:
                name: seafile-secret
          ports:
            - containerPort: 80
          volumeMounts:
            - name: seafile-data
              mountPath: /shared
      volumes:
        - name: seafile-data
          persistentVolumeClaim:
            claimName: seafile-data
      restartPolicy: Always
      imagePullSecrets:
        - name: regcred
EOF

Set seafile-env to the following:

cat << "EOF" | tee /opt/seafile-k8s-yaml/seafile-env.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: seafile-env
  namespace: seafile
data:
  # for Seafile server
  TIME_ZONE: "Asia/Tokyo"
  SEAFILE_LOG_TO_STDOUT: "true"
  SITE_ROOT: "/"
  SEAFILE_SERVER_HOSTNAME: "<your-worker-node-ip>:30007"
  SEAFILE_SERVER_PROTOCOL: "http"

  # for database
  SEAFILE_MYSQL_DB_HOST: "mysql"
  SEAFILE_MYSQL_DB_PORT: "3306"
  SEAFILE_MYSQL_DB_USER: "seafile"
  SEAFILE_MYSQL_DB_CCNET_DB_NAME: "ccnet_db"
  SEAFILE_MYSQL_DB_SEAFILE_DB_NAME: "seafile_db"
  SEAFILE_MYSQL_DB_SEAHUB_DB_NAME: "seahub_db"

  # for cached
  CACHE_PROVIDER: "redis" # or "memcached"

  ## for redis
  REDIS_HOST: "redis-leader"
  REDIS_PASSWORD: "<your-secure-password>"
  REDIS_PORT: "6379"

  ## for memcached
  MEMCACHED_HOST: "<your-worker-node-ip>"
  MEMCACHED_PORT: "11211"

  # for s3
  SEAF_SERVER_STORAGE_TYPE: "disk"
  S3_COMMIT_BUCKET: ""
  S3_FS_BUCKET: ""
  S3_BLOCK_BUCKET: ""
  S3_KEY_ID: ""
  S3_USE_V4_SIGNATURE: "true"
  S3_AWS_REGION: "us-east-1"
  S3_HOST: ""
  S3_USE_HTTPS: "true"
  S3_PATH_STYLE_REQUEST: "false"

  # for notification
  ENABLE_NOTIFICATION_SERVER: "false"
  NOTIFICATION_SERVER_URL: ""

  # for seadoc
  ENABLE_SEADOC: "true"
  SEADOC_SERVER_URL: "<your-worker-node-ip>" # only valid in ENABLE_SEADOC = true

  # initialization (only valid in first-time deployment and CLUSTER_INIT_MODE = true)
  CLUSTER_INIT_MODE: "false"

  ## for Seafile admin
  INIT_SEAFILE_ADMIN_EMAIL: "admin@example.com"

  ## for cluster basic service
  CLUSTER_INIT_ES_HOST: "elasticsearch"
  CLUSTER_INIT_ES_PORT: "9200"

  # Seafile AI
  ENABLE_SEAFILE_AI: "yes"
  SEAFILE_AI_SERVER_URL: "<your-worker-node-ip>"

  # Matedata server
  MD_FILE_COUNT_LIMIT: "0"
EOF

Apply all of the yaml files again:

kubectl apply -f /opt/seafile-k8s-yaml/

Troubleshooting: File Uploads and Downloads Not Working

If the Seahub web UI loads correctly but file uploads and downloads fail (from both the browser and the Seafile mobile app), the most likely cause is a misconfigured SEAFILE_SERVER_HOSTNAME.

The Problem

When SEAFILE_SERVER_HOSTNAME is set without the NodePort (e.g., just the IP address), Seafile generates file operation URLs pointing to port 80:

SERVICE_URL = http://<ip> (port 80)
FILE_SERVER_ROOT = http://<ip>/seafhttp

If Seahub is exposed via NodePort (e.g., 30007), port 80 on the node is not serving Seafile. The browser and mobile app receive a connection refused error when attempting file operations.

The Fix

Ensure SEAFILE_SERVER_HOSTNAME in seafile-env.yaml includes the NodePort:

SEAFILE_SERVER_HOSTNAME: "<your-worker-node-ip>:30007"

Important: In Seafile Pro 13.0, Seahub’s Django settings.py computes SERVICE_URL and FILE_SERVER_ROOT from the SEAFILE_SERVER_HOSTNAME environment variable after loading seahub_settings.py. This means setting SERVICE_URL and FILE_SERVER_ROOT in seahub_settings.py alone will not work — the environment variable takes precedence.

To apply the fix without restarting the pod (which would trigger the init container’s chown -R on the entire data volume), exec into the frontend pod and restart Seahub with the corrected environment variable:

kubectl exec <seafile-frontend-pod> -n seafile -- bash -c 'export SEAFILE_SERVER_HOSTNAME="<your-worker-node-ip>:30007" && /opt/seafile/seafile-pro-server-<version>/seahub.sh restart'

Then patch the ConfigMap so future pod starts use the correct value:

kubectl patch configmap seafile-env -n seafile --type merge -p '{"data":{"SEAFILE_SERVER_HOSTNAME":"<your-worker-node-ip>:30007"}}'

Note on Elasticsearch

Elasticsearch is used solely for file search indexing. Warnings in the frontend logs about Elasticsearch security features not being enabled are informational only — they do not affect file uploads or downloads.

Troubleshooting: Library Cannot Be Synced Due to Too Many Files

If the Seafile desktop client shows “Library cannot be synced since it has too many files”, the library exceeds the default file count limit. This commonly occurs with large directories such as Steam game libraries, which can contain 200,000–500,000+ files.

Library cannot be synced error

Two Separate File Count Limits

Seafile has two independent file count settings that are often confused:

max_sync_file_count in seafile.conf under [fileserver] — controls whether the desktop or mobile client can sync a library. Default: 100,000. This is the setting that causes the sync error.
MD_FILE_COUNT_LIMIT in the ConfigMap (environment variable) — controls whether the metadata management feature is enabled for a library. Default: 100,000. This does not affect sync.

Both should be raised for large libraries.

The Fix (without pod restart)

Since seafile.conf lives on the shared PVC at /opt/seafile/conf/seafile.conf, it can be edited in-place via kubectl exec without restarting the pod (which would trigger the slow chown -R on the entire data volume).

Add max_sync_file_count and fs_id_list_request_timeout under the [fileserver] section of seafile.conf:

kubectl exec <seafile-frontend-pod> -n seafile -- bash -c 'sed -i "/^\[fileserver\]/a max_sync_file_count = -1\nfs_id_list_request_timeout = -1" /opt/seafile/conf/seafile.conf'

Setting both values to -1 removes the limit entirely (supported since Seafile Pro 8.0.4). The resulting seafile.conf should look like:

[fileserver]
max_sync_file_count = -1
fs_id_list_request_timeout = -1
port=8082

[cluster]
enable = true

Restart the fileserver process inside the frontend pod (not the pod itself):

kubectl exec <seafile-frontend-pod> -n seafile -- /opt/seafile/seafile-pro-server-<version>/seafile.sh restart

Since both frontend and backend pods share the same PVC, the config edit is already visible to the backend pod. Restart its fileserver process too:

kubectl exec <seafile-backend-pod> -n seafile -- /opt/seafile/seafile-pro-server-<version>/seafile.sh restart

Verify the settings took effect by checking the startup logs for:

fileserver: max_sync_file_count = -1
fileserver: fs_id_list_request_timeout = -1

Updating the Metadata File Count Limit

To also raise MD_FILE_COUNT_LIMIT, patch the live ConfigMap:

kubectl patch configmap seafile-env -n seafile --type merge -p '{"data":{"MD_FILE_COUNT_LIMIT":"0"}}'

Then update the on-disk manifest (/opt/seafile-k8s-yaml/seafile-env.yaml) to match:

  # Matedata server
  MD_FILE_COUNT_LIMIT: "0"

This change only takes effect on future pod restarts, since environment variables injected via envFrom require a pod restart to update.

Data Transfer via NFS

To transfer data, install nfs-utils on both the Worker Node and the Client:

sudo dnf install -y nfs-utils

If on ZFS and using datasets, do the following instead:

sudo zfs set sharenfs='rw=@<your-client-ip>,no_root_squash' <your-zfs-dataset>

Check to make sure NFS on ZFS was shared properly:

sudo zfs get sharenfs <your-zfs-dataset>

ExportFS:

sudo exportfs -ra

Restart the service:

sudo systemctl restart nfs-server rpcbind

If on another filesystem or NOT using datasets with ZFS, use this method:
Add the following into /etc/exports for the Worker Node:

cat << "EOF" | tee /etc/exports
<your-nfs-path> <your-client-ip>(rw,sync,no_subtree_check,no_root_squash)
EOF

Enable the NFS server on the Worker Node:

sudo systemctl enable --now nfs-server

Ensure these services are allowed through the Worker Node’s firewall:

sudo firewall-cmd --zone=public --permanent --add-service=mountd
sudo firewall-cmd --zone=public --permanent --add-service=nfs
sudo firewall-cmd --zone=public --permanent --add-service=rpc-bind
sudo firewall-cmd --reload

On the Client machine, create the following directory:

sudo mkdir -p <your-nfs-mount-point>

Mount the NFS share on the Client:

sudo mount <your-worker-node-ip>:<your-nfs-path> <your-nfs-mount-point>

Add the following into /etc/fstab on the Client:

cat << "EOF" | sudo tee -a /etc/fstab
<your-worker-node-ip>:<your-nfs-path> <your-nfs-mount-point> nfs auto,nofail,noatime,nolock,intr,tcp,actimeo=1800 0 0
EOF

Setting Up the Seafile Sync Client on the Worker Node

These steps set up KDE Plasma, the Seafile desktop sync client (AppImage), and RustDesk remote desktop (Flatpak) on the Kubernetes worker node running Rocky Linux 9. All commands are run on the worker node via SSH.

Prerequisites

SSH access to the worker node as a user with sudo privileges
kubectl access to the cluster (from the control plane or a machine with a valid kubeconfig)

Cordon the Worker Node

Before installing packages and rebooting, cordon the worker node to prevent new pod scheduling. Run this from the control plane:

kubectl cordon <your-worker-node>

Enable the CRB Repository

The KDE Plasma group on Rocky Linux 9 depends on packages from EPEL, which in turn require aspell from the CRB (Code Ready Builder) repository. CRB is disabled by default and must be enabled first:

sudo dnf config-manager --set-enabled crb

Verify that EPEL is also installed:

sudo dnf install -y epel-release

Install KDE Plasma Workspaces

sudo dnf groupinstall -y "KDE Plasma Workspaces"

This installs plasma-desktop, plasma-workspace, sddm, konsole, dolphin, flatpak, and all default KDE applications.

Protect Kubernetes Networking from NetworkManager

The KDE group pulls in NetworkManager components that can interfere with CNI interfaces. Create a drop-in config to exclude all Kubernetes-managed interfaces before enabling any services:

sudo tee /etc/NetworkManager/conf.d/99-k8s-unmanaged.conf > /dev/null << "EOF"
[keyfile]
unmanaged-devices=interface-name:cni0;interface-name:flannel.*;interface-name:cali*;interface-name:veth*;interface-name:tunl0;interface-name:vxlan.calico;interface-name:kube-bridge;interface-name:kube-dummy*;interface-name:docker0
EOF

Enable SDDM and Set the Graphical Target

sudo systemctl enable sddm
sudo systemctl set-default graphical.target

Verify KDE Installation

rpm -q plasma-desktop plasma-workspace sddm

All three packages should show as installed.

Install the Seafile Sync Client (AppImage)

Install FUSE (required for AppImages to mount themselves):

sudo dnf install -y fuse fuse-libs
sudo modprobe fuse

Create the appimages directory and download the Seafile AppImage:

mkdir -p ~/appimages
curl -L -o ~/appimages/Seafile-x86_64-9.0.18.AppImage \
  "https://sos-ch-dk-2.exo.io/seafile-downloads/Seafile-x86_64-9.0.18.AppImage"

Make the AppImage executable:

chmod +x ~/appimages/Seafile-x86_64-9.0.18.AppImage

Verify the download:

ls -la ~/appimages/Seafile-x86_64-9.0.18.AppImage

The file should be approximately 184 MB with the execute bit set.

Install RustDesk via Flatpak

Flatpak is already installed as a dependency of the KDE group. Add the Flathub remote and install RustDesk:

sudo flatpak remote-add --system --if-not-exists flathub \
  https://flathub.org/repo/flathub.flatpakrepo

sudo flatpak install --system --noninteractive flathub com.rustdesk.RustDesk

Verify:

flatpak list --system | grep -i rustdesk

Reboot and Verify

Reboot the worker node to activate SDDM and the graphical target:

sudo systemctl reboot

After the node comes back up, verify all components:

systemctl is-active sddm
systemctl get-default
systemctl is-active kubelet
ls -la ~/appimages/Seafile-x86_64-9.0.18.AppImage
flatpak list --system | grep -i rustdesk

Expected results:

Component	Check	Expected
KDE Plasma	`rpm -q plasma-desktop sddm`	plasma-desktop 5.27.12, sddm 0.20.0
SDDM	`systemctl is-active sddm`	active
Default target	`systemctl get-default`	graphical.target
NM isolation	`nmcli device status` (k8s interfaces)	unmanaged
Seafile AppImage	`ls -la ~/appimages/Seafile-x86_64-9.0.18.AppImage`	~184 MB, executable
RustDesk	`flatpak list --system \\| grep rustdesk`	com.rustdesk.RustDesk 1.4.6
kubelet	`systemctl is-active kubelet`	active

Uncordon the Worker Node

Once everything is verified, uncordon the node from the control plane:

kubectl uncordon <your-worker-node>

Confirm the node is Ready and schedulable:

kubectl get nodes

Monitoring the Cluster with Prometheus and Grafana

This section deploys independent Prometheus and Grafana monitoring stacks on both the worker node and the control plane node. Each node gets its own Prometheus instance scraping local metrics and its own Grafana dashboard. A shared node-exporter DaemonSet runs on all nodes to expose CPU, RAM, and disk metrics.

All YAML files are created on the control plane and applied via kubectl.

Create the Monitoring Directories

On the control plane, create a directory to hold all monitoring YAML files:

sudo mkdir -p /opt/monitoring-k8s-yaml

Worker Node Monitoring Stack

Namespace and RBAC

Create the monitoring namespace, a ServiceAccount for Prometheus, and the required ClusterRole and ClusterRoleBinding:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/namespace-rbac.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: monitoring
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus
  namespace: monitoring
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: prometheus
rules:
- apiGroups: [""]
  resources:
  - nodes
  - nodes/proxy
  - nodes/metrics
  - services
  - endpoints
  - pods
  verbs: ["get", "list", "watch"]
- apiGroups: [""]
  resources:
  - configmaps
  verbs: ["get"]
- nonResourceURLs: ["/metrics"]
  verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: monitoring
EOF

Apply it:

kubectl apply -f /opt/monitoring-k8s-yaml/namespace-rbac.yaml

node-exporter DaemonSet

The node-exporter DaemonSet runs on every node in the cluster (including the control plane via tolerations) and exposes hardware and OS-level metrics on port 9100:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/node-exporter.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: node-exporter
  namespace: monitoring
  labels:
    app: node-exporter
spec:
  selector:
    matchLabels:
      app: node-exporter
  template:
    metadata:
      labels:
        app: node-exporter
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "9100"
    spec:
      hostNetwork: true
      hostPID: true
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      containers:
      - name: node-exporter
        image: prom/node-exporter:latest
        args:
        - "--path.procfs=/host/proc"
        - "--path.sysfs=/host/sys"
        - "--path.rootfs=/host/root"
        - "--collector.filesystem.mount-points-exclude=^/(dev|proc|sys|var/lib/docker/.+|var/lib/kubelet/.+|var/lib/containerd/.+)($|/)"
        - "--collector.netclass.ignored-devices=^(veth.*|cni.*|flannel.*|cali.*)$"
        ports:
        - containerPort: 9100
          name: metrics
        volumeMounts:
        - name: proc
          mountPath: /host/proc
          readOnly: true
        - name: sys
          mountPath: /host/sys
          readOnly: true
        - name: root
          mountPath: /host/root
          readOnly: true
        resources:
          requests:
            memory: "64Mi"
            cpu: "100m"
          limits:
            memory: "128Mi"
            cpu: "200m"
      volumes:
      - name: proc
        hostPath:
          path: /proc
      - name: sys
        hostPath:
          path: /sys
      - name: root
        hostPath:
          path: /
EOF

If your control plane has additional custom taints, add corresponding tolerations to the DaemonSet spec.

Apply it:

kubectl apply -f /opt/monitoring-k8s-yaml/node-exporter.yaml

Verify that a node-exporter pod is running on every node:

kubectl get pods -n monitoring -l app=node-exporter -o wide

Prometheus Configuration

Create a ConfigMap with the Prometheus scrape configuration. This configures Prometheus to scrape itself and the node-exporter instance on the worker node:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/prometheus-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: monitoring
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      evaluation_interval: 15s

    scrape_configs:
    - job_name: "prometheus"
      static_configs:
      - targets: ["localhost:9090"]

    - job_name: "node-exporter"
      static_configs:
      - targets: ["<your-worker-node-ip>:9100"]
        labels:
          instance: "<your-worker-node-hostname>"

    - job_name: "kubernetes-nodes"
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
EOF

Prometheus Deployment

Deploy Prometheus pinned to the worker node with 30-day data retention. An init container sets the correct ownership on the data volume (Prometheus runs as UID 65534):

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/prometheus-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus
  namespace: monitoring
  labels:
    app: prometheus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      serviceAccountName: prometheus
      nodeSelector:
        kubernetes.io/hostname: <your-worker-node-hostname>
      initContainers:
      - name: set-ownership
        image: busybox
        command: ["sh", "-c", "chown -R 65534:65534 /prometheus"]
        volumeMounts:
        - name: data
          mountPath: /prometheus
      containers:
      - name: prometheus
        image: prom/prometheus:latest
        args:
        - "--config.file=/etc/prometheus/prometheus.yml"
        - "--storage.tsdb.path=/prometheus"
        - "--storage.tsdb.retention.time=30d"
        - "--web.console.libraries=/usr/share/prometheus/console_libraries"
        - "--web.console.templates=/usr/share/prometheus/consoles"
        ports:
        - containerPort: 9090
          name: http
        volumeMounts:
        - name: config
          mountPath: /etc/prometheus
        - name: data
          mountPath: /prometheus
        resources:
          requests:
            memory: "256Mi"
            cpu: "200m"
          limits:
            memory: "512Mi"
            cpu: "500m"
        livenessProbe:
          httpGet:
            path: /-/healthy
            port: 9090
          initialDelaySeconds: 15
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /-/ready
            port: 9090
          initialDelaySeconds: 5
          periodSeconds: 10
      volumes:
      - name: config
        configMap:
          name: prometheus-config
      - name: data
        hostPath:
          path: /var/lib/prometheus/data
          type: DirectoryOrCreate
EOF

Prometheus Service

Expose Prometheus via NodePort 30090:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/prometheus-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: monitoring
  labels:
    app: prometheus
spec:
  type: NodePort
  selector:
    app: prometheus
  ports:
  - name: http
    port: 9090
    targetPort: 9090
    nodePort: 30090
EOF

Apply the Prometheus resources:

kubectl apply -f /opt/monitoring-k8s-yaml/prometheus-config.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/prometheus-deployment.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/prometheus-service.yaml

Verify that Prometheus is running:

kubectl get pods -n monitoring -l app=prometheus

Access the Prometheus web UI at http://<your-worker-node-ip>:30090.

Grafana Provisioning

Grafana is pre-configured with three ConfigMaps: a datasource pointing to Prometheus, a dashboard provider, and the “Node Exporter Full” dashboard JSON (Grafana dashboard ID 1860) which provides CPU usage, RAM usage, storage usage per disk, and storage remaining per partition.

Datasource ConfigMap:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/grafana-datasource.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-datasource-config
  namespace: monitoring
data:
  datasource.yaml: |
    apiVersion: 1
    datasources:
    - name: Prometheus
      type: prometheus
      access: proxy
      url: http://prometheus.monitoring.svc.cluster.local:9090
      isDefault: true
      editable: true
      uid: prometheus
EOF

Dashboard provider ConfigMap:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/grafana-dashboard-provider.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-dashboard-provider-config
  namespace: monitoring
data:
  dashboards.yaml: |
    apiVersion: 1
    providers:
    - name: default
      orgId: 1
      folder: ""
      type: file
      disableDeletion: false
      editable: true
      options:
        path: /var/lib/grafana/dashboards
        foldersFromFilesStructure: false
EOF

Dashboard JSON ConfigMap (created from file):

Download the Node Exporter Full dashboard JSON:

curl -s -L "https://grafana.com/api/dashboards/1860/revisions/37/download" \
  -o /opt/monitoring-k8s-yaml/node-exporter-full-raw.json

The downloaded JSON contains __inputs and DS_PROMETHEUS placeholder references that must be replaced with the actual datasource UID (prometheus). Run the following Python script to fix them:

python3 << 'PYEOF'
import json

with open("/opt/monitoring-k8s-yaml/node-exporter-full-raw.json") as f:
    d = json.load(f)

d.pop("__inputs", None)
d.pop("__elements", None)
d.pop("__requires", None)

if "templating" in d and "list" in d["templating"]:
    for var in d["templating"]["list"]:
        if var.get("type") == "datasource":
            var["query"] = "prometheus"
        if "datasource" in var:
            if isinstance(var["datasource"], dict):
                var["datasource"] = {"type": "prometheus", "uid": "prometheus"}
            elif isinstance(var["datasource"], str) and "DS_PROMETHEUS" in var["datasource"]:
                var["datasource"] = {"type": "prometheus", "uid": "prometheus"}

def fix_ds(obj):
    if isinstance(obj, dict):
        if "datasource" in obj:
            ds = obj["datasource"]
            if isinstance(ds, str) and "DS_PROMETHEUS" in ds:
                obj["datasource"] = {"type": "prometheus", "uid": "prometheus"}
            elif isinstance(ds, dict) and ds.get("uid", "").startswith("${"):
                obj["datasource"] = {"type": "prometheus", "uid": "prometheus"}
        for v in obj.values():
            fix_ds(v)
    elif isinstance(obj, list):
        for item in obj:
            fix_ds(item)

fix_ds(d)
d["uid"] = "node-exporter-full"
d["id"] = None

with open("/opt/monitoring-k8s-yaml/node-exporter-full.json", "w") as f:
    json.dump(d, f, separators=(",", ":"))

print("Dashboard JSON fixed successfully.")
PYEOF

Create the ConfigMap from the fixed JSON:

kubectl create configmap grafana-dashboards \
  --from-file=node-exporter-full.json=/opt/monitoring-k8s-yaml/node-exporter-full.json \
  -n monitoring

Grafana Credentials

Create a Kubernetes Secret with the Grafana admin credentials. Replace the base64 values with your own username and password (use echo -n '<your-value>' | base64):

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/grafana-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: grafana-admin-creds
  namespace: monitoring
type: Opaque
data:
  admin-user: <your-base64-encoded-username>
  admin-password: <your-base64-encoded-password>
EOF

Grafana Deployment

Deploy Grafana pinned to the worker node. An init container sets the correct ownership (Grafana runs as UID 472):

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/grafana-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana
  namespace: monitoring
  labels:
    app: grafana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
    spec:
      nodeSelector:
        kubernetes.io/hostname: <your-worker-node-hostname>
      initContainers:
      - name: set-ownership
        image: busybox
        command: ["sh", "-c", "chown -R 472:472 /var/lib/grafana"]
        volumeMounts:
        - name: data
          mountPath: /var/lib/grafana
      containers:
      - name: grafana
        image: grafana/grafana:latest
        env:
        - name: GF_SECURITY_ADMIN_USER
          valueFrom:
            secretKeyRef:
              name: grafana-admin-creds
              key: admin-user
        - name: GF_SECURITY_ADMIN_PASSWORD
          valueFrom:
            secretKeyRef:
              name: grafana-admin-creds
              key: admin-password
        - name: GF_USERS_ALLOW_SIGN_UP
          value: "false"
        ports:
        - containerPort: 3000
          name: http
        volumeMounts:
        - name: datasource-config
          mountPath: /etc/grafana/provisioning/datasources
        - name: dashboard-provider-config
          mountPath: /etc/grafana/provisioning/dashboards
        - name: dashboards
          mountPath: /var/lib/grafana/dashboards
        - name: data
          mountPath: /var/lib/grafana
        resources:
          requests:
            memory: "128Mi"
            cpu: "100m"
          limits:
            memory: "256Mi"
            cpu: "250m"
      volumes:
      - name: datasource-config
        configMap:
          name: grafana-datasource-config
      - name: dashboard-provider-config
        configMap:
          name: grafana-dashboard-provider-config
      - name: dashboards
        configMap:
          name: grafana-dashboards
      - name: data
        hostPath:
          path: /var/lib/grafana/data
          type: DirectoryOrCreate
EOF

Grafana Service

Expose Grafana via NodePort 30030:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/grafana-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: monitoring
  labels:
    app: grafana
spec:
  type: NodePort
  selector:
    app: grafana
  ports:
  - name: http
    port: 3000
    targetPort: 3000
    nodePort: 30030
EOF

Apply the Grafana resources:

kubectl apply -f /opt/monitoring-k8s-yaml/grafana-datasource.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/grafana-dashboard-provider.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/grafana-secret.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/grafana-deployment.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/grafana-service.yaml

Access Grafana at http://<your-worker-node-ip>:30030 and sign in with the credentials from the Secret. The “Node Exporter Full” dashboard should appear pre-configured under Dashboards.

Control Plane Monitoring Stack

The control plane gets its own independent Prometheus and Grafana installation in namespace monitoring-cp. The key differences from the worker stack are: a separate namespace, distinct resource names to avoid collisions, tolerations for the control-plane taint, and a nodeSelector pinning pods to the control plane node.

Namespace and RBAC

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-namespace-rbac.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: monitoring-cp
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus-cp
  namespace: monitoring-cp
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: prometheus-cp
rules:
- apiGroups: [""]
  resources:
  - nodes
  - nodes/proxy
  - nodes/metrics
  - services
  - endpoints
  - pods
  verbs: ["get", "list", "watch"]
- apiGroups: [""]
  resources:
  - configmaps
  verbs: ["get"]
- nonResourceURLs: ["/metrics"]
  verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: prometheus-cp
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus-cp
subjects:
- kind: ServiceAccount
  name: prometheus-cp
  namespace: monitoring-cp
EOF

kubectl apply -f /opt/monitoring-k8s-yaml/cp-namespace-rbac.yaml

Prometheus Configuration (Control Plane)

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-prometheus-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config-cp
  namespace: monitoring-cp
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      evaluation_interval: 15s

    scrape_configs:
    - job_name: "prometheus"
      static_configs:
      - targets: ["localhost:9090"]

    - job_name: "node-exporter"
      static_configs:
      - targets: ["<your-control-plane-ip>:9100"]
        labels:
          instance: "<your-control-plane-hostname>"

    - job_name: "kubernetes-nodes"
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
EOF

Prometheus Deployment (Control Plane)

The deployment includes tolerations for the control plane taint and a nodeSelector to ensure it runs on the control plane:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-prometheus-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-cp
  namespace: monitoring-cp
  labels:
    app: prometheus-cp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus-cp
  template:
    metadata:
      labels:
        app: prometheus-cp
    spec:
      serviceAccountName: prometheus-cp
      nodeSelector:
        kubernetes.io/hostname: <your-control-plane-hostname>
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      initContainers:
      - name: set-ownership
        image: busybox
        command: ["sh", "-c", "chown -R 65534:65534 /prometheus"]
        volumeMounts:
        - name: data
          mountPath: /prometheus
      containers:
      - name: prometheus
        image: prom/prometheus:latest
        args:
        - "--config.file=/etc/prometheus/prometheus.yml"
        - "--storage.tsdb.path=/prometheus"
        - "--storage.tsdb.retention.time=30d"
        - "--web.console.libraries=/usr/share/prometheus/console_libraries"
        - "--web.console.templates=/usr/share/prometheus/consoles"
        ports:
        - containerPort: 9090
          name: http
        volumeMounts:
        - name: config
          mountPath: /etc/prometheus
        - name: data
          mountPath: /prometheus
        resources:
          requests:
            memory: "256Mi"
            cpu: "200m"
          limits:
            memory: "512Mi"
            cpu: "500m"
        livenessProbe:
          httpGet:
            path: /-/healthy
            port: 9090
          initialDelaySeconds: 15
          periodSeconds: 30
        readinessProbe:
          httpGet:
            path: /-/ready
            port: 9090
          initialDelaySeconds: 5
          periodSeconds: 10
      volumes:
      - name: config
        configMap:
          name: prometheus-config-cp
      - name: data
        hostPath:
          path: /var/lib/prometheus-cp/data
          type: DirectoryOrCreate
EOF

Prometheus Service (Control Plane)

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-prometheus-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: prometheus-cp
  namespace: monitoring-cp
  labels:
    app: prometheus-cp
spec:
  type: NodePort
  selector:
    app: prometheus-cp
  ports:
  - name: http
    port: 9090
    targetPort: 9090
    nodePort: 30091
EOF

Grafana Provisioning (Control Plane)

Create the datasource, dashboard provider, and dashboard ConfigMaps in the monitoring-cp namespace. The datasource URL points to the control plane’s Prometheus instance.

Datasource ConfigMap:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-grafana-datasource.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-datasource-config-cp
  namespace: monitoring-cp
data:
  datasource.yaml: |
    apiVersion: 1
    datasources:
    - name: Prometheus
      type: prometheus
      access: proxy
      url: http://prometheus-cp.monitoring-cp.svc.cluster.local:9090
      isDefault: true
      editable: true
      uid: prometheus
EOF

Dashboard provider ConfigMap:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-grafana-dashboard-provider.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-dashboard-provider-config-cp
  namespace: monitoring-cp
data:
  dashboards.yaml: |
    apiVersion: 1
    providers:
    - name: default
      orgId: 1
      folder: ""
      type: file
      disableDeletion: false
      editable: true
      options:
        path: /var/lib/grafana/dashboards
        foldersFromFilesStructure: false
EOF

Dashboard JSON ConfigMap (reuses the same fixed JSON from the worker stack):

kubectl create configmap grafana-dashboards-cp \
  --from-file=node-exporter-full.json=/opt/monitoring-k8s-yaml/node-exporter-full.json \
  -n monitoring-cp

Grafana Credentials (Control Plane)

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-grafana-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: grafana-admin-creds-cp
  namespace: monitoring-cp
type: Opaque
data:
  admin-user: <your-base64-encoded-username>
  admin-password: <your-base64-encoded-password>
EOF

Grafana Deployment (Control Plane)

Same pattern as the worker deployment but with tolerations and nodeSelector for the control plane, and a different hostPath (/var/lib/grafana-cp/data) to avoid conflicts:

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-grafana-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana-cp
  namespace: monitoring-cp
  labels:
    app: grafana-cp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana-cp
  template:
    metadata:
      labels:
        app: grafana-cp
    spec:
      nodeSelector:
        kubernetes.io/hostname: <your-control-plane-hostname>
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      initContainers:
      - name: set-ownership
        image: busybox
        command: ["sh", "-c", "chown -R 472:472 /var/lib/grafana"]
        volumeMounts:
        - name: data
          mountPath: /var/lib/grafana
      containers:
      - name: grafana
        image: grafana/grafana:latest
        env:
        - name: GF_SECURITY_ADMIN_USER
          valueFrom:
            secretKeyRef:
              name: grafana-admin-creds-cp
              key: admin-user
        - name: GF_SECURITY_ADMIN_PASSWORD
          valueFrom:
            secretKeyRef:
              name: grafana-admin-creds-cp
              key: admin-password
        - name: GF_USERS_ALLOW_SIGN_UP
          value: "false"
        ports:
        - containerPort: 3000
          name: http
        volumeMounts:
        - name: datasource-config
          mountPath: /etc/grafana/provisioning/datasources
        - name: dashboard-provider-config
          mountPath: /etc/grafana/provisioning/dashboards
        - name: dashboards
          mountPath: /var/lib/grafana/dashboards
        - name: data
          mountPath: /var/lib/grafana
        resources:
          requests:
            memory: "128Mi"
            cpu: "100m"
          limits:
            memory: "256Mi"
            cpu: "250m"
      volumes:
      - name: datasource-config
        configMap:
          name: grafana-datasource-config-cp
      - name: dashboard-provider-config
        configMap:
          name: grafana-dashboard-provider-config-cp
      - name: dashboards
        configMap:
          name: grafana-dashboards-cp
      - name: data
        hostPath:
          path: /var/lib/grafana-cp/data
          type: DirectoryOrCreate
EOF

Grafana Service (Control Plane)

cat << "EOF" | sudo tee /opt/monitoring-k8s-yaml/cp-grafana-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: grafana-cp
  namespace: monitoring-cp
  labels:
    app: grafana-cp
spec:
  type: NodePort
  selector:
    app: grafana-cp
  ports:
  - name: http
    port: 3000
    targetPort: 3000
    nodePort: 30031
EOF

Apply the ConfigMap YAMLs and all other control plane monitoring resources:

kubectl apply -f /opt/monitoring-k8s-yaml/cp-namespace-rbac.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-prometheus-config.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-prometheus-deployment.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-prometheus-service.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-grafana-datasource.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-grafana-dashboard-provider.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-grafana-secret.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-grafana-deployment.yaml
kubectl apply -f /opt/monitoring-k8s-yaml/cp-grafana-service.yaml

Access the control plane Grafana at http://<your-control-plane-ip>:30031.

Monitoring Verification

Component	URL / Command	Expected
Prometheus (worker)	`http://<your-worker-node-ip>:30090`	Prometheus UI accessible
Grafana (worker)	`http://<your-worker-node-ip>:30030`	Login with configured credentials, dashboard shows worker metrics
Prometheus (CP)	`http://<your-control-plane-ip>:30091`	Prometheus UI accessible
Grafana (CP)	`http://<your-control-plane-ip>:30031`	Login with configured credentials, dashboard shows CP metrics
node-exporter	`kubectl get pods -n monitoring -l app=node-exporter -o wide`	One pod per node, all Running

Deploying a RustDesk Server on Kubernetes

RustDesk is an open-source remote desktop application. The server consists of two components: hbbs (the ID/rendezvous server) and hbbr (the relay server). This section deploys both on Kubernetes using the rustdesk/rustdesk-server container image, pinned to the control plane node with hostNetwork for direct port access.

Prerequisites

Firewall ports must be open on the control plane node for RustDesk:

sudo firewall-cmd --permanent --add-port=21115/tcp
sudo firewall-cmd --permanent --add-port=21116/tcp
sudo firewall-cmd --permanent --add-port=21116/udp
sudo firewall-cmd --permanent --add-port=21117/tcp
sudo firewall-cmd --permanent --add-port=21118/tcp
sudo firewall-cmd --permanent --add-port=21119/tcp
sudo firewall-cmd --reload

Create the RustDesk Namespace and Storage

kubectl create ns rustdesk
sudo mkdir -p /opt/rustdesk-server-data

Label the Control Plane Node

Label the control plane so the RustDesk pods can target it with a nodeSelector:

kubectl label node <your-control-plane-hostname> rustdesk-server=true

Create the YAML Directory

sudo mkdir -p /opt/rustdesk-k8s-yaml

hbbs Deployment (ID/Rendezvous Server)

cat << "EOF" | sudo tee /opt/rustdesk-k8s-yaml/rustdesk-hbbs.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rustdesk-hbbs
  namespace: rustdesk
  labels:
    app: rustdesk-hbbs
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rustdesk-hbbs
  template:
    metadata:
      labels:
        app: rustdesk-hbbs
    spec:
      hostNetwork: true
      nodeSelector:
        rustdesk-server: "true"
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      containers:
      - name: hbbs
        image: rustdesk/rustdesk-server:latest
        command: ["hbbs"]
        args: ["-r", "<your-control-plane-ip>:21117"]
        volumeMounts:
        - name: data
          mountPath: /root
      volumes:
      - name: data
        hostPath:
          path: /opt/rustdesk-server-data
          type: DirectoryOrCreate
EOF

hbbr Deployment (Relay Server)

cat << "EOF" | sudo tee /opt/rustdesk-k8s-yaml/rustdesk-hbbr.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rustdesk-hbbr
  namespace: rustdesk
  labels:
    app: rustdesk-hbbr
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rustdesk-hbbr
  template:
    metadata:
      labels:
        app: rustdesk-hbbr
    spec:
      hostNetwork: true
      nodeSelector:
        rustdesk-server: "true"
      tolerations:
      - key: node-role.kubernetes.io/control-plane
        operator: Exists
        effect: NoSchedule
      containers:
      - name: hbbr
        image: rustdesk/rustdesk-server:latest
        command: ["hbbr"]
        volumeMounts:
        - name: data
          mountPath: /root
      volumes:
      - name: data
        hostPath:
          path: /opt/rustdesk-server-data
          type: DirectoryOrCreate
EOF

Deploy and Verify

kubectl apply -f /opt/rustdesk-k8s-yaml/

Verify both pods are running:

kubectl get pods -n rustdesk -o wide

Retrieve the Server Public Key

After hbbs starts for the first time, it generates an ed25519 keypair. Retrieve the public key:

cat /opt/rustdesk-server-data/id_ed25519.pub

Configuring RustDesk Clients

On each RustDesk client (whether installed via Flatpak, native package, or on another platform), configure the following in the RustDesk settings under “Network”:

ID Server: <your-control-plane-ip>
Relay Server: <your-control-plane-ip>
Key: the contents of id_ed25519.pub from the step above

This applies to every machine that needs to connect through your self-hosted RustDesk server, including the worker node, the control plane itself, and any external devices.

Setting Up the Control Plane Node with KDE, Libvirt, and RustDesk

These steps install KDE Plasma, libvirt with virt-manager, and the RustDesk client on the Kubernetes control plane node running Rocky Linux 9. All commands are run on the control plane node.

Enable the CRB Repository

The KDE Plasma group depends on packages from EPEL, which in turn require packages from the CRB (Code Ready Builder) repository:

sudo dnf config-manager --set-enabled crb

Verify that EPEL is installed:

sudo dnf install -y epel-release

Install KDE Plasma Workspaces

sudo dnf groupinstall -y "KDE Plasma Workspaces"

Protect Kubernetes Networking from NetworkManager

The KDE group pulls in NetworkManager components that can interfere with CNI interfaces. Create a drop-in configuration to exclude all Kubernetes-managed interfaces:

sudo tee /etc/NetworkManager/conf.d/99-k8s-unmanaged.conf > /dev/null << "EOF"
[keyfile]
unmanaged-devices=interface-name:cni0;interface-name:flannel.*;interface-name:cali*;interface-name:veth*;interface-name:tunl0;interface-name:vxlan.calico;interface-name:kube-bridge;interface-name:kube-dummy*;interface-name:docker0
EOF

Enable SDDM and Set the Graphical Target

sudo systemctl enable sddm
sudo systemctl set-default graphical.target

Install Libvirt and virt-manager

sudo dnf install -y qemu-kvm libvirt virt-manager virt-install bridge-utils virt-top libguestfs-tools virt-viewer
sudo systemctl enable --now libvirtd
sudo usermod -aG libvirt <your-username>

VMs use libvirt’s default NAT network (virbr0) for internet access. This avoids modifying the host’s primary network interface, which would risk breaking the Kubernetes control plane.

Verify the default network is active:

sudo virsh net-list --all

If the default network is not active:

sudo virsh net-start default
sudo virsh net-autostart default

Create VM Directories

Create directories to store ISO images, VM disk images, and additional storage:

mkdir -p ~/isos ~/images ~/storage

Install RustDesk Client via Flatpak

Flatpak is already installed as a dependency of the KDE group. Add the Flathub remote and install RustDesk:

sudo flatpak remote-add --system --if-not-exists flathub \
  https://flathub.org/repo/flathub.flatpakrepo

sudo flatpak install --system --noninteractive flathub com.rustdesk.RustDesk

Verify:

flatpak list --system | grep -i rustdesk

Reboot and Verify

Reboot the control plane to activate SDDM and the graphical target:

sudo systemctl reboot

After the node comes back up, verify all components:

systemctl is-active sddm
systemctl get-default
systemctl is-active kubelet
kubectl get nodes
sudo virsh net-list --all
flatpak list --system | grep -i rustdesk
ls ~/isos ~/images ~/storage

Expected results:

Component	Check	Expected
KDE Plasma	`rpm -q plasma-desktop sddm`	Installed
SDDM	`systemctl is-active sddm`	active
Default target	`systemctl get-default`	graphical.target
NM isolation	`nmcli device status` (K8s interfaces)	unmanaged
libvirt	`sudo virsh net-list --all`	default network active
virt-manager	`rpm -q virt-manager`	Installed
RustDesk client	`flatpak list --system \\| grep rustdesk`	com.rustdesk.RustDesk installed
kubelet	`systemctl is-active kubelet`	active
Cluster	`kubectl get nodes`	Both nodes Ready
